EYKK #10 stainless steel top stops ZF/bow-shaped Delrin 9 These stainless steel stirrup-shaped or saddle-shaped top stops are especially suitable for Delrin injection molded zip fasteners with a chain width of 7.8 to 10 mm. Compared to other types of top stops, this wiry stopper can be attached to coarse chain teeth of such zip fasteners in a particularly easy, quick and secure way, because you do not have to remove a tooth from the zipper and the top stop encircles the tooth. Other possible applications are described here ...

Below, we show you step-by-step how to attach these top stops to a Delrin or Vislon zip fastener. The first 6 pictures show the assembly of top stops, which are formed from relatively thick wire. However, we have since switched to top stops made of thinner wire, because the thinner wire also allows these top stops to be pressed into the narrower gaps between the injection-molded teeth of zippers with narrower chains width, such as YKK Vislon 8VS, 5VS, and 3VS, or Delrin plastic molded zippers D8, D6, and D4. We show the crimped top stops made of thinner wire in the last two images at the very bottom of this page.

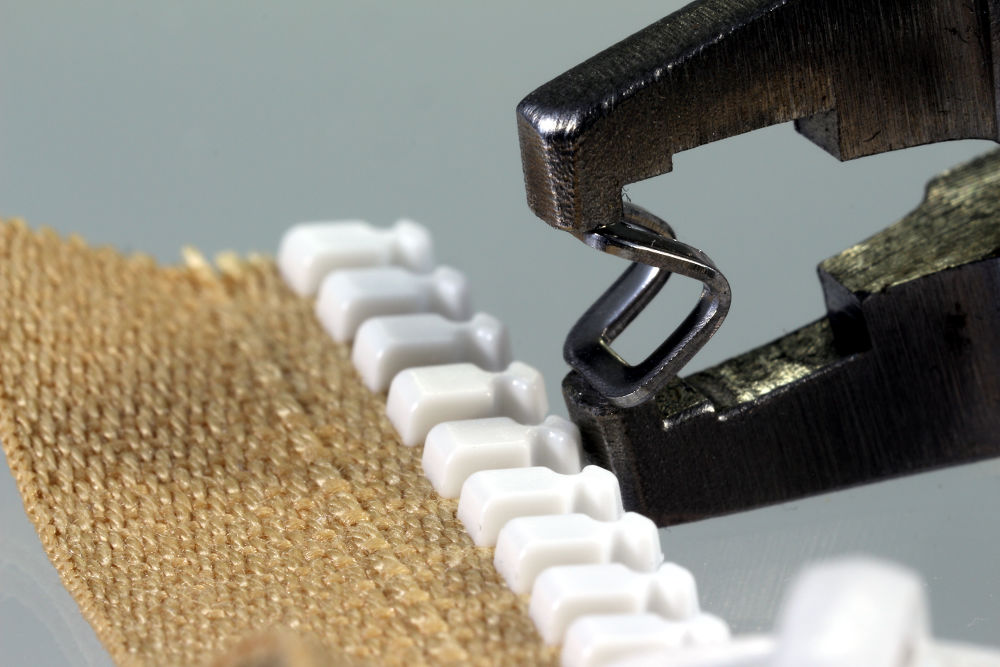

Stainless steel top stop in Osborne pliers prior to installation on the Delrin 9 zip fastenerPlace a top stop at the very front between the jaws of suitable pliers.

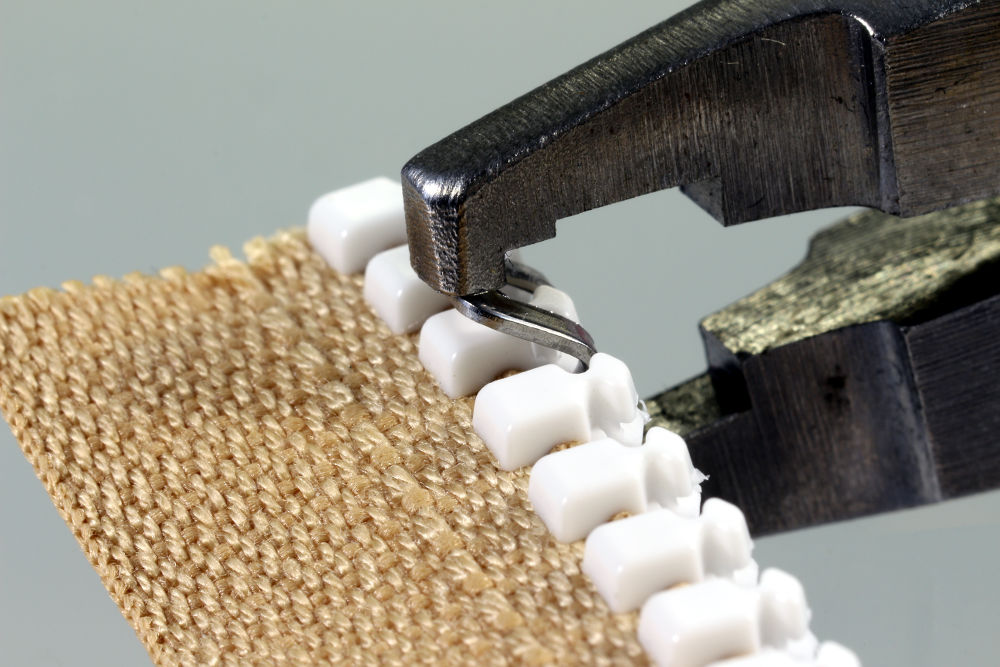

Sliding a stainless steel top stop with Osborne pliers over the Delrin 9 zip fastener plastic toothUsing the pliers, slide the top stop over a tooth of the zipper chain.

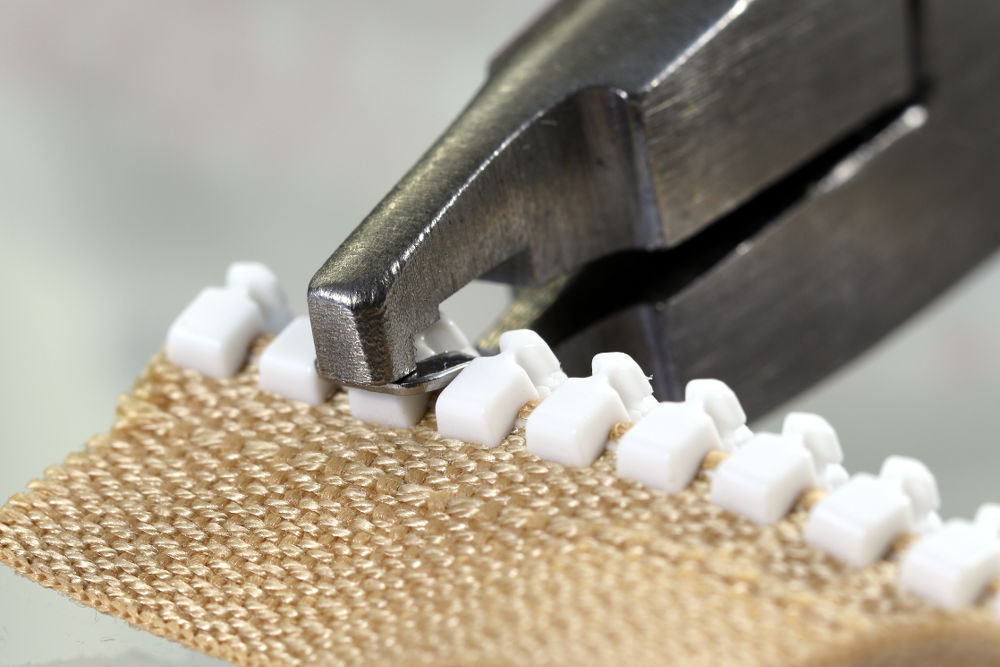

Crimping a stainless steel top stop with Osborne pliers around the Delrin 9 zip fastener plastic toothNow carefully press the handles of the pliers together.

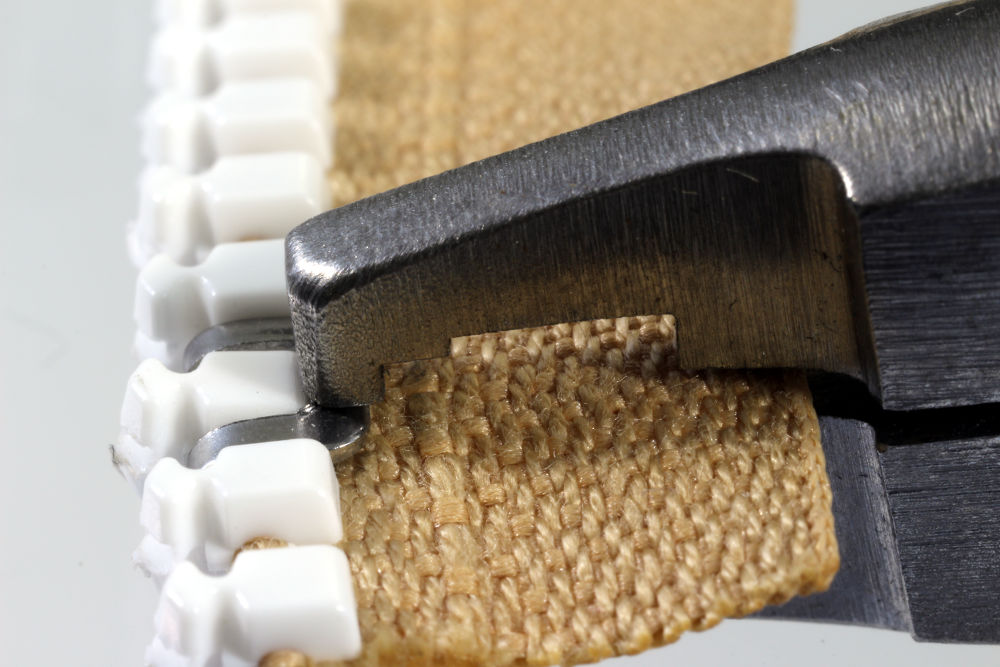

Final crimping of a stainless steel top stop around the Delrin 9 zip fastener toothFinally, place the pliers from the other side of the zipper tape to grab the top stop and press the stopper firmly onto the tape.

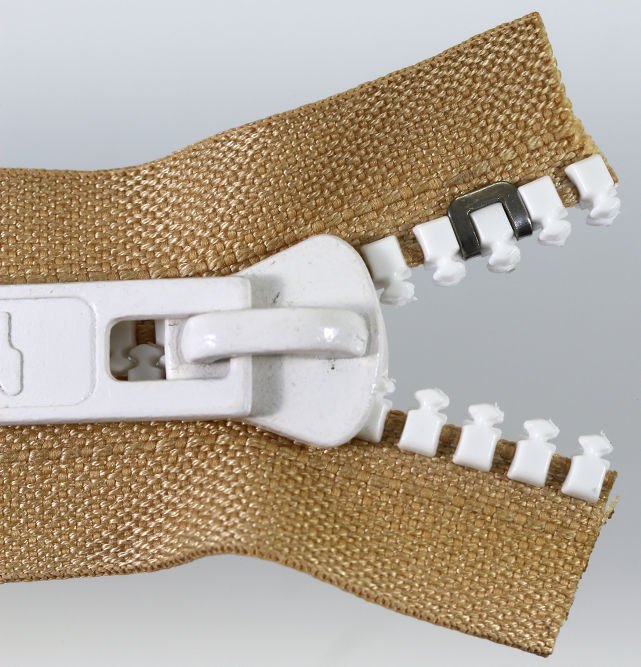

Stainless steel top stop crimped around the Delrin 9 zip fastener tooth

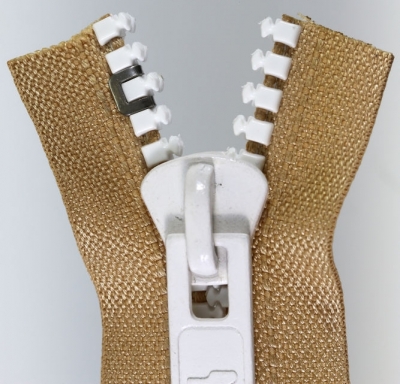

The pressed top stop sits neatly and securely. Stainless steel top stop stops the slider on the Delrin 9 zip fastener

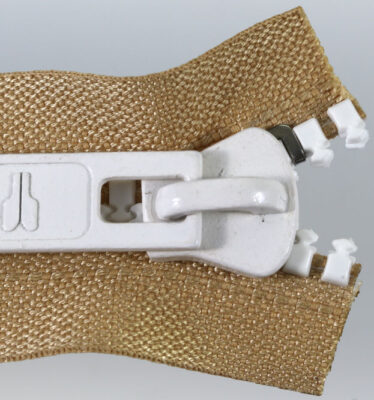

Since the top stop overhangs sideways over the zipper chain, it cannot fully enter the slider completely. Therefore, a bow-shaped top stop reliably stops the slider in any situation, even when the slider on separable zippers slides along only one of the two sides of the zipper chain.

A bent-frame top stop made of thinner wire, crimped onto the Delrin 9/Vislon 10VF zipper

Ein fertig verpresstes Anfangsteil aus dünnerem Draht sitzt ordentlich und sicher an einem Reißverschluss Delrin 9/Vislon 10VF. Wenn der Reißverschluss geschlossen ist, taucht das Anfangsteil weitgehend in den Schieber. Bügelförmiges Anfangsteil aus dünnerem Draht am Reißverschluss Delrin 6/Vislon 5VS verpresst

Die Anfangsteile aus dünnerem Draht passen nicht nur auf die Zähne von Delrin- oder Vislon-Reißverschlüssen mit 8,7 mm Kettenbreite, sondern auch auf die kleineren Zähne von Delrin-Reißverschlüssen mit 7,8 mm, 5,8 mm oder 4,7 mm Kettenbreite. Dieses Bild zeigt das Anfangsteil an einem Reißverschluss Delrin 6/Vislon 5VS mit ca. 5,8 mm Kettenbreite. In den kleineren Schieber kann das Anfangsteil jedoch nicht so wie in den größeren Schieber eines Reißverschlusses Delrin 9 eintauchen.
